Application of t-win linear guide rail in automation of table stabilizer:

Table stable t-win guideway slider is a kind of workpiece which makes the slider do reciprocating motion on the guideway by using ball or roller. It is 1 / 40 of the friction coefficient of traditional hard rail, and has high positioning accuracy and high rigidity.

So it is widely used in CNC machine tools, automation equipment, CNC woodworking machinery, optical fiber cutting machine, drilling machine, 3C electronics, glass edging machine, advertising inkjet, photo machine and other industrial equipment.

Advantages of t-win series linear guide rail structure:

(1) The guide rail and the slide block do relative motion through the circular rolling of the steel ball. The end cover and lower seal at both ends can effectively prevent dust and other foreign matters from entering the slider. Through the oil nozzle, the steel ball can be lubricated circularly and conveniently.

(2) Four columns of circular arc contact are adopted, and the operation is stable. The contact angle of 45 ° can bear the common load in the four directions of up, down, left and right, and the bearing capacity can be changed by adding and subtracting the number of sliding blocks.

(3) The friction mode of linear guideway is rolling friction, the friction coefficient is reduced to 1 / 40 of the sliding track, and the difference between dynamic friction and static friction is very small, so the linear guideway has good follow-up performance, which is beneficial to improving the response speed and sensitivity of the CNC system, realizing gapless movement and high positioning accuracy.

(4) Due to the small friction resistance, the driving power and mechanical structure can be reduced, so that the equipment can be miniaturized, high-speed and low energy consumption.

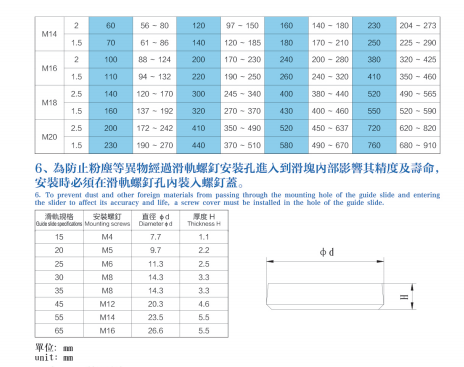

T-WIN Installation  Considerations of linear slide
