Manufacturer's instruction of table stable t-win in lhr20cc production base of driving parts of woodworking machinery and equipment:

The company has a professional R & D team and a number of advanced production lines, and has obtained a number of invention patents, can provide a complete set of technical solutions. TSMC t-win series linear guide sliders and gear rack products have superior quality and high cost performance, occupying a large market share in the industry. The company adheres to the principle of focusing on precision drive positioning movement and being a reliable partner of customers. It has been focusing on the field of precision drive positioning movement for many years, accumulated a lot of experience, and has the ability to solve all kinds of problems of precision drive positioning. Now the company's products are widely used in machinery manufacturing, automation equipment, woodworking machinery, electronic equipment, semiconductor equipment, medical treatment, transportation and other industries. With excellent quality, the products have won the praise of customers.

Advantages of the product series:

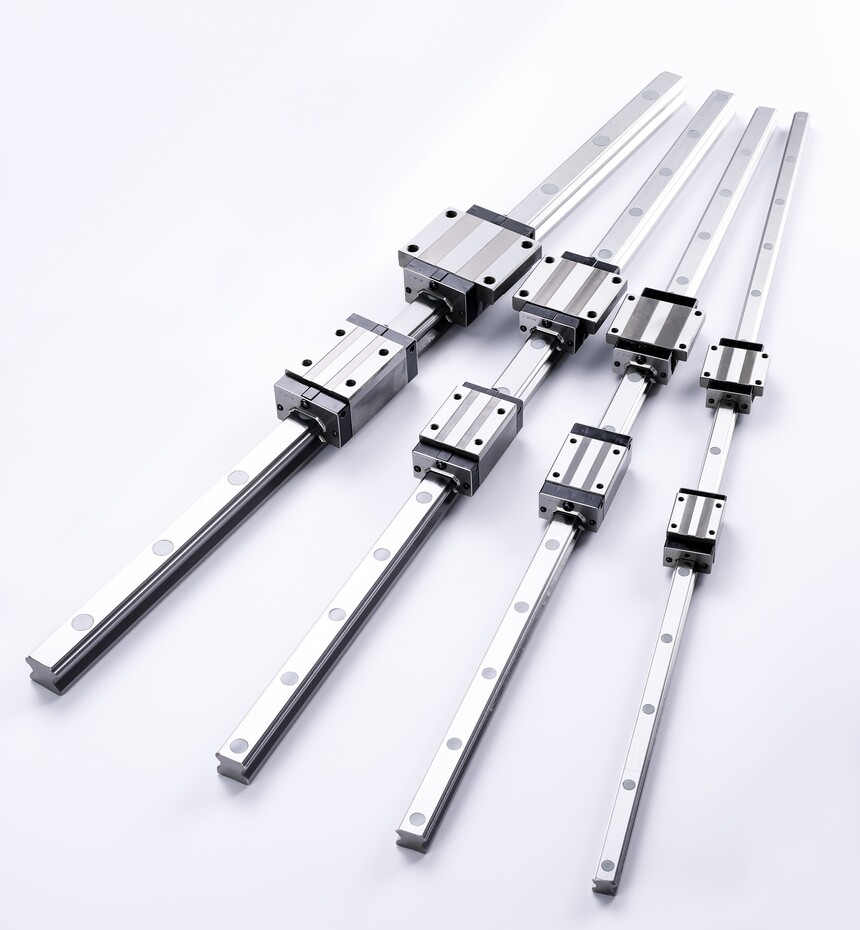

The table stable t-win series linear guide sliders adopt the design of four columns of circular arc contact. The steel ball contacts the sliders at an angle of 45 degrees between the sliders and the sliders, which can balance and offset the forces from the sliders in all directions. The load capacity in all directions is equal regardless of the angle device of the sliders. It is widely used in all kinds of mechanical manufacturing transmission positioning parts. Even if there is a certain deviation or combination error in the assembly track datum, it can be eliminated by the system itself, so the fast and precise linear motion can be obtained. TSMC t-win series linear guideway has been recognized by customers and market in the past ten years.

Advantages of table stable t-win series linear guide rail:

① . fast movement speed, 480m per minute without holding beads.

② . small friction coefficient and low resistance, which can meet the requirements of high speed and low noise operation.

③ . large rated load, uniform stress and large overall load.

④ . high stability, high speed and stable movement.

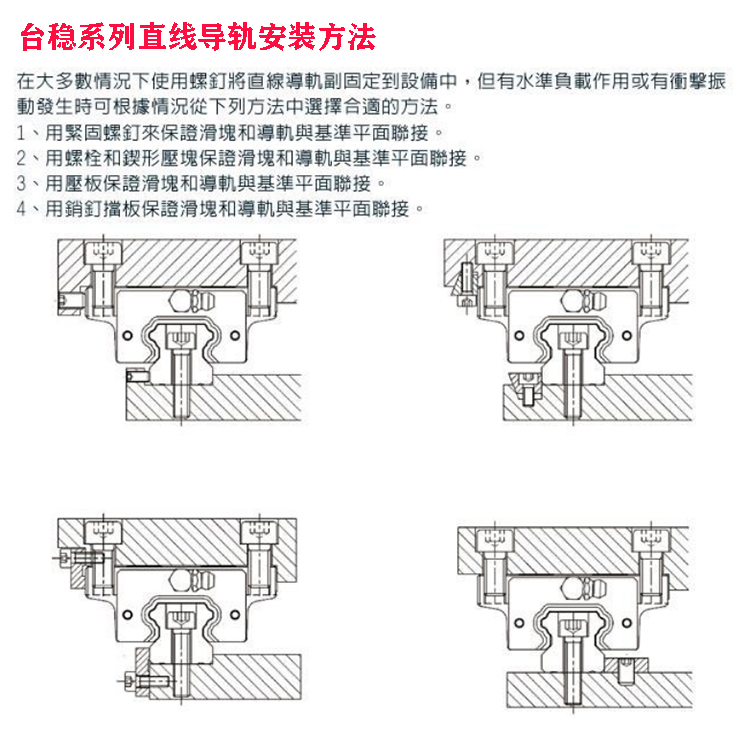

⑤ . easy to install, can be directly installed on the base, easy to operate.

⑥ . the slider dust-proof design can be used for one or two layers of dust-proof, with good dust-proof effect and long service life.

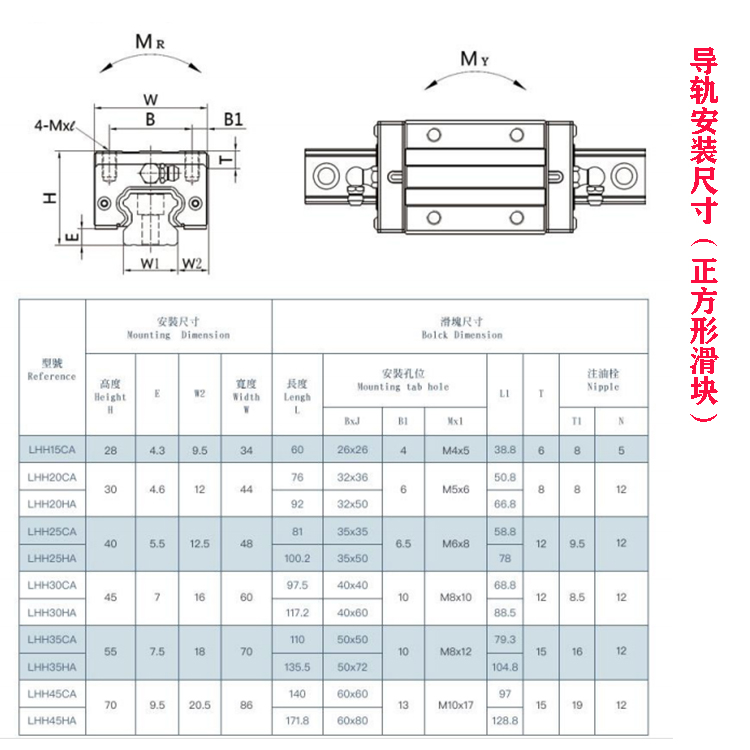

直线导轨LHR20-1500产品参数说明：
